Impact Testing Machine

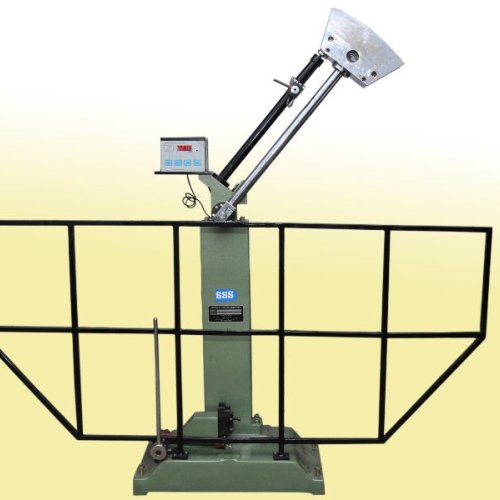

Buyers can avail themselves of high-performance Digital Impact Testing Machine at best prices from us! We are one of the eminent Manufacturers and Suppliers of Digital Impact Testing Machine in Maharashtra. We fabricate these machines to perform Izod and Charpy tests. The methodologies adopted to conduct these tests adhere to BS : 131 : Part 4-1972 (Amended 15 Aug. 1993) BSEN : 10045-2 : 1993.

Working :
The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy & the lower one for Izod testing. On release, the pendulum swings down to break the specimen and the energy absorbed in doing so, is measured as the difference between the heights of drop before the rupture of the test specimen and is read from the maximum pointer position on the dial scale.

(It is read on the digital readout in case of electronic machines.)

There are two strikers and one combined support available for fitting in to the pendulum and onto the base of the machine for the Izod, Charpy test respectively. Changing from one striker to another is achieved simply by fixing the new striker into its position.

Optional Accessories :

• Caliper gauge for checking V notch for Izod & Charpy.
  Templates for checking 10 x 10 mm cross section of Izod
• / Charpy test specimen
• Depth notch gauge including V & U notch gauges for checking depth blow V/U notch, angle and radius.
• Self centering tong for quick and accurate setting of
• Charpy test specimen.
• 'V' notch milling cutter
• 'U' notch milling cutter

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.

We are manufacturing as well as supplying Impact Testing Machine in India. Our Impact Testing Machine is designed for conducting Izod & Charpy test. The test method conforms to BS: 131: part 4 1972 (Amended 15 Aug – 1993) & BSEN: 10045 – 2: 1993.

Constriction and functions of Impact Testing Machine
The Pendulum is mounted on antifriction bearings. It has two starting positions, the upper one for Charpy and the lower one for Izod testing. On release, the pendulum swing down to break the specimen and the energy absorbed in doing so is measured as the difference between the height of drop before rupture & height of raise after rupture of the test specimen and is read form the maximum pointer on the dial scale.

Controls of Pendulum
The Pendulum supported in the starting position is by a self resetting latch. The release mechanism is operated by lever. The pendulum release latch is operated only when this lever is operated.

Strikers & Supports
There are two strikers & one combined support available for fitting into the pendulum & on to the base of the machine for Izod, Charpy test. Changing from one striker to another is achieved simply by fixing the new striker into its position.

Optional Accessories

• Caliper gauge for checking V notch for Izod & Charpy as per BS: 131: Part 1, 2, 3
• Depth notch gauge including V & U notch, angle & radius
• Self centering tong
• V – Notch milling cutter
• U – Notch milling cutter

Charpy Test
The charpy test piece rests on alloy steel supports anvils. Fitted on the base of the machine rigidly held in position by allen screws. End stopper is provided for quickly & accurately loading the test piece centrally between the supports.

Izod Test
The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a machined vertical groove to suite the test piece size. The front clamp piece & allen screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied.

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
